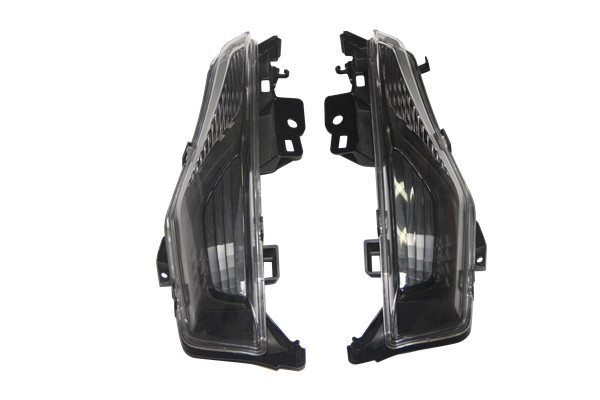

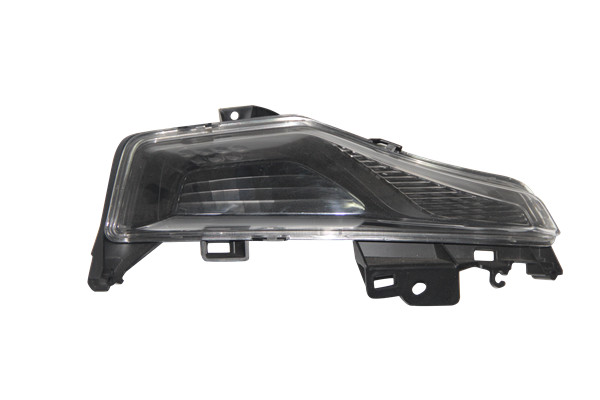

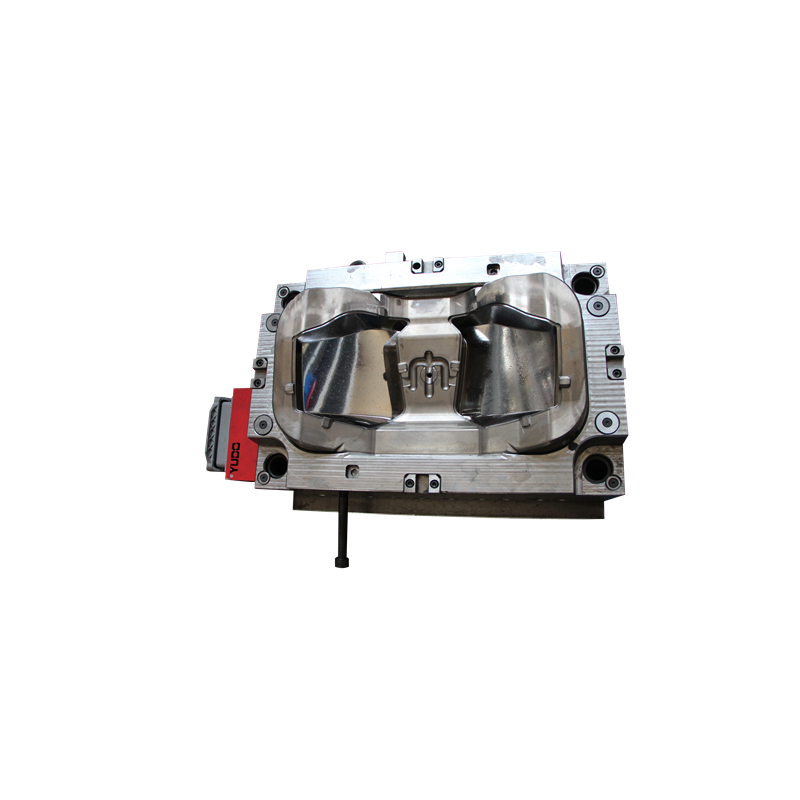

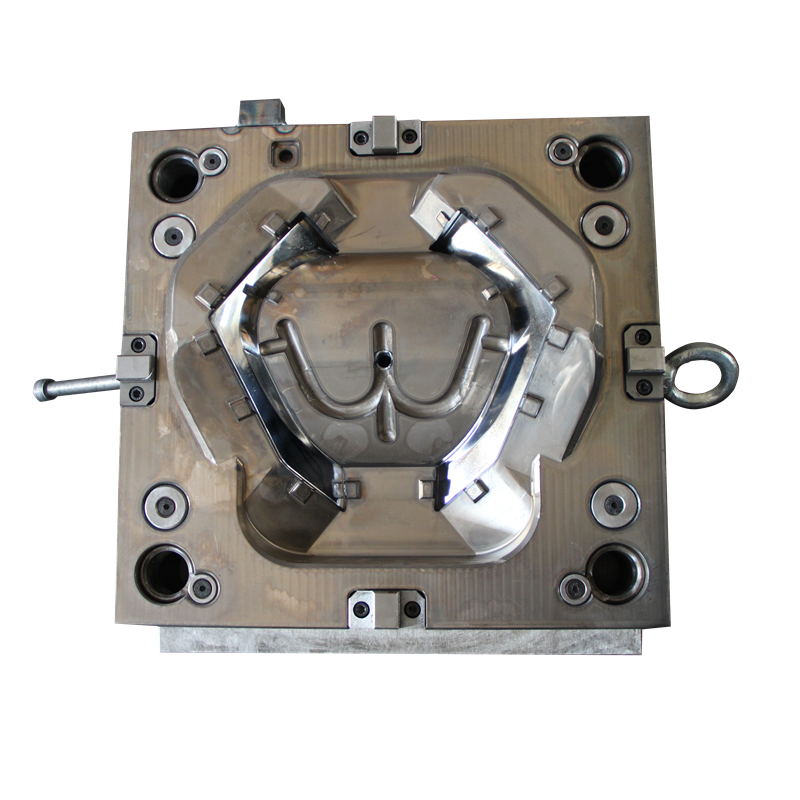

motorcycle headlight injection mold
Headlightmould-1
Quantity:
Key points of motorcycle headlight injection mold design:
motorcycle headlight injection mold designing process:
(1) Determine the model and specification of the injection mold.
(1) Determine the model and specification of the injection mold.
(2) Formulate the design plan of the mold, including formwork, steel, mold structure, etc.
(3) Draw mold engineering drawings, use CAD software or other programs to draw the three-dimensional structure diagram of the mold.
(4) Set the properties of the mold, such as material, hardness, number of wire cuts, etc.
(5) Carry out the layered design of the mold, layer the mold, and determine the equipment for each layer.
(6) Design the mold runner and cooling system.
(7) Carry out digital simulation and simulation tests, and optimize.
(8) Make mold parts, including templates, sliders, guide posts, template brackets, etc.
(9) Assemble the mold. During the assembly process, it is necessary to check whether the cooperation and installation of each component are correct.
(10) Debug the mold, debug and test the mold to ensure that it achieves the expected production effect.
Design requirements:
(1) Ensure the quality and precision of the mold and be able to produce high-quality products.
(1) Ensure the quality and precision of the mold and be able to produce high-quality products.
(2) Ensure the durability and service life of the mold.
(3) Consider the process requirements to ensure that the mold can meet the requirements of injection molding.
(4) Optimize the design of the mold structure to improve production efficiency and safety.
In short, the design of injection molds for motorcycles needs to take into account multiple factors such as the structure, size, and process requirements of the product to ensure that the mold can effectively produce high-quality products and improve production efficiency and safety.
FAQ
Q: Are you mould factory?
Answer: Yes, Younger mould factory was established in 1999 and specialized in making injection mould.
Q: What kind of mould you can make?
Answer:Headlamp mould, Tail lamp mould, Thick wall mould, Light guide mould, optics optical mould, Fog lamp mould, reflex reflector mould, license plate lamp mould, front turn signal lamp mould, daytime running lamp mould, high mount stop lamp mould, transparent parts production lines, etc.
Q: What about your payment terms?
Answer: 50% prepayment in advance, and the balance should be paid before shipment.
Q:Mould T0 trial date?
Answer:We need to calculate the date after the customer confirms all drawings, the mold-making date does not include the drawing design date.
Q: How's the annual output of your company?
Answer: We can make 200 sets each year.
Q: How about the mold machining report?
Answer: Our engineering team will send the machining report PPT to the client on every Friday.
Q: How long of the mould warranty period?
Answer: The mould warranty period for 1 year(Damage caused by human factors or accident are not within the the scope of warranty), 50% spare parts will send to customer for free.
