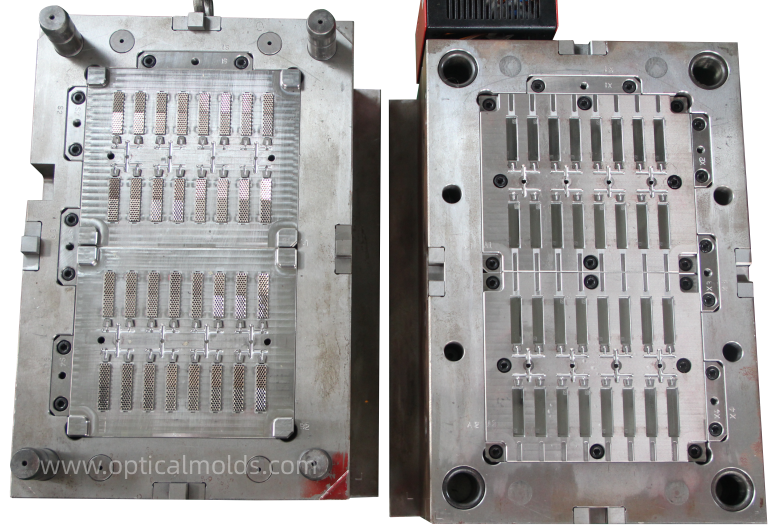

Bicycle Pedals Reflector injection mold
RR reflector 0101
32 cavities hot runner Bicycle Pedals Reflector injection mold
Quantity:
| Mould name: | Bicycle Pedals Reflector injection mold |
| mould steel: | S136 |
| Cavity No.: | 32 cavities |
| Runner Type: | 8 points hot runner |
| Regulations | IS06742-2, ISI ,ECE, BIS (Bureau of Indian Standards) |
| Raw material | PMMA |
| injection molding machine tonnage: | 160ton |

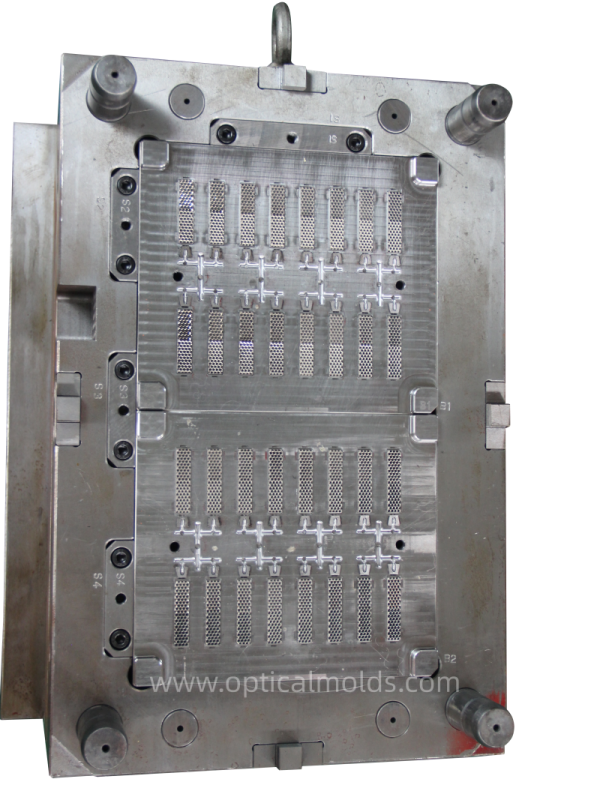

In India, the government requires Bicycle pedal reflectors to pass the BIS (Bureau of Indian Standards), and Younger Mould can produce Pedal reflector mold that ensure passing the BIS standard.
We make Bicycle Pedals Reflector injection mold, Spoke reflector mould, mudguard reflector mould for Indian customers that can pass ISI and ISO6742-2. We can make Bicycle Pedals Reflector injection molds with 16 cavities, 32 cavities and more, both cold runner and hot runner are available.

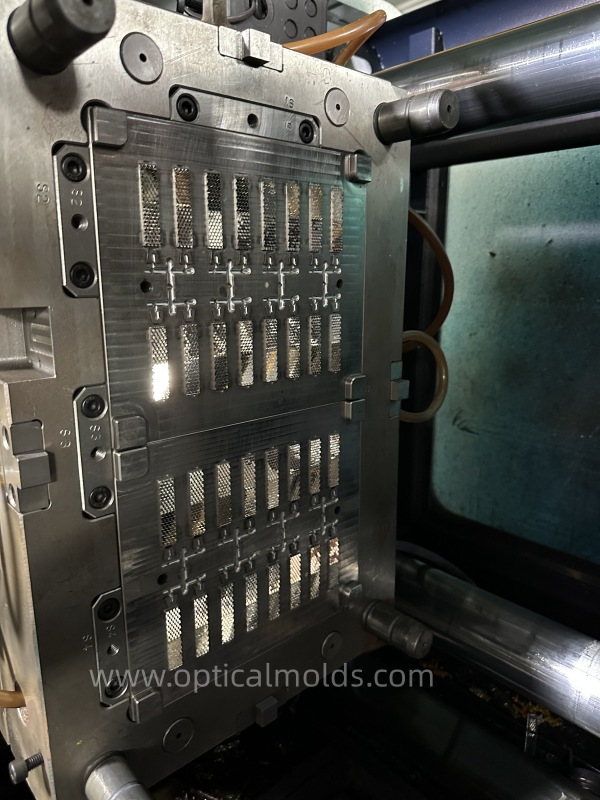

Bicycle pedal reflectors are small devices that attach to the pedals of a bicycle to increase visibility and safety while riding at night. the raw material such as PMMA. Bicycle Pedals Reflector injection mold made by RR reflector insert and mold core and cavity. RR insert is formed by cutting an entire electroform. the mould steel is S136, normaly it's hot runner moulds.
