Bicycle Spoke Reflector Mold
RF001

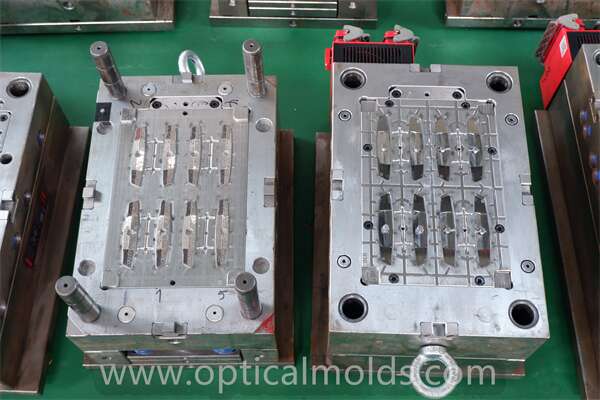

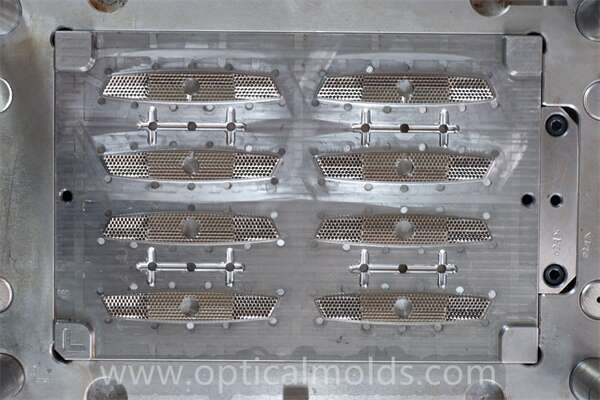

8 cavities hot runner Bicycle Spoke Reflector Mold, good quality Electroform with high reflex value, can pass ISO6742 certification
Quantity:
8 cavities hot runner Bicycle Spoke Reflector Mold, good quality Electroform with high reflex value, can pass ISO6742 certification
| Mould name: | Bicycle Spoke Reflector Mold |
| mould steel: | S136 |
| Cavity No.: | 8 cavities |
| Runner Type: | 4 points hot runner |
| Regulations | IS06742-2, ISI ,ECE, BIS (Bureau of Indian Standards) |
| Raw material | PMMA |
| injection molding machine tonnage: | 160ton |
Bicycle wheel RR reflectors mold Certified by ISI and ISO6742-2 made by Younger Mould factory
The bicycle reflector mold produced by Younger Mold factory uses high-quality electroform, which is guaranteed to pass the ISO6742-2 standard and can pass the ISI certification. High reflectivity. We can make spoke reflectors molds, front reflectors molds, rear reflectors molds, pedal reflectors molds.
The manufacturing process for bicycle spoke reflectors typically involves injection molding. Injection molding is a process by which molten plastic is injected into a mold cavity to form a solid object.
To create a mold for a bicycle spoke reflector, first, a design or CAD model is created. Then, make Bicycle Spoke Reflector Mold. The mold consists of two halves, an injection side and an ejection side, with the injection side containing the cavity where the molten plastic will be injected. RR reflex reflector made by electroform will be used in the mould.
Once the mold is ready, the plastic material is fed into the injection molding machine. The plastic is then melted and injected into the mold cavity, filling the shape of the reflector. The plastic is cooled and solidified, and the ejection side of the mold is opened to release the finished reflector from the mold.
After the reflector is released, it undergoes additional processing, including trimming and finishing, to remove any excess material or rough edges.
The final product is a durable and lightweight reflector that can be easily attached to a bicycle spoke to increase visibility and enhance safety while riding.
To create a mold for a bicycle spoke reflector, first, a design or CAD model is created. Then, make Bicycle Spoke Reflector Mold. The mold consists of two halves, an injection side and an ejection side, with the injection side containing the cavity where the molten plastic will be injected. RR reflex reflector made by electroform will be used in the mould.
Once the mold is ready, the plastic material is fed into the injection molding machine. The plastic is then melted and injected into the mold cavity, filling the shape of the reflector. The plastic is cooled and solidified, and the ejection side of the mold is opened to release the finished reflector from the mold.
After the reflector is released, it undergoes additional processing, including trimming and finishing, to remove any excess material or rough edges.
The final product is a durable and lightweight reflector that can be easily attached to a bicycle spoke to increase visibility and enhance safety while riding.
In India, the government requires Bureau of Indian Standards Bicycle mudguard reflector mold, and Younger Mould can produce Pedal reflector mold that ensure passing the BIS standard.
